4596 5/8X5/8X2-1/2 4FL

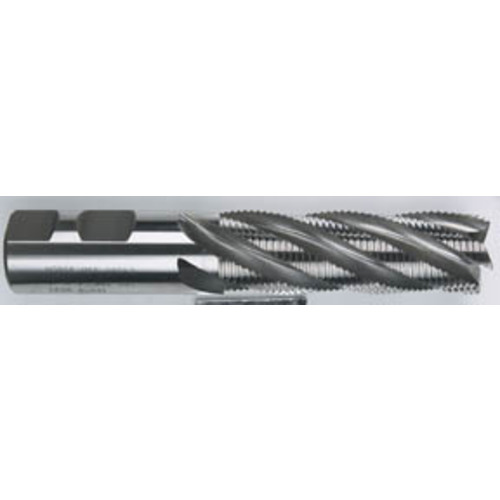

SQ End Mill; 5/8″ Dia. × 2-1/2″ LOC × 5/8″ Shank Dia. × 4-5/8″ OAL ; 4 FL ; HSSCo ; Uncoated ; Series 4596
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 5/8″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Length Group | Long |
| Overall Length (OAL) | 4-5/8″ | Flute Type | Fine Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Non-Center Cutting | Series/List # | 4596 |
| Usable Length (LU) | 2-1/2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
5.00000
Package Width
.75000
Package Height
.75000
Package Weight
0.34
