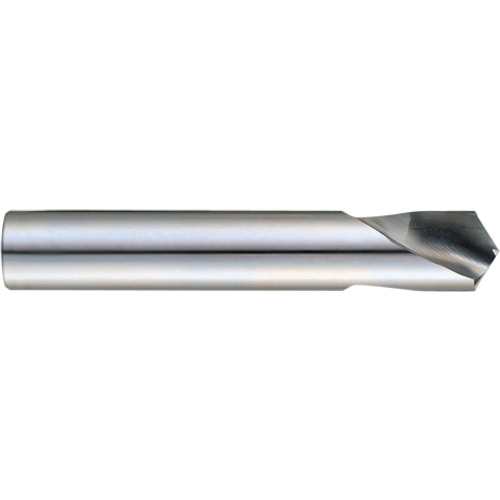

Drill Bit; 5/8″ Dia. × 4.53″ OAL × 5/8″ Shank Dia. ; 120 Degrees ; 2 FL ; HSS Co8 ; Uncoated ; Series D2N90
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | HSSCo8 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Nose Length | 11/61″ |
| Decimal Equivalent | 0.625″ | Applicable Material | | Steel | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.875 mm | Flute Length | 1.575″ |
| Point Angle (SIG) | 120 Degrees | Size | 5/8″ |
| Angle | 120 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.53″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | D2N90 |
| Coating | Uncoated |
Product Features
| Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
5.25
Package Width
0.875
Package Height
0.875
Package Weight
0.349
