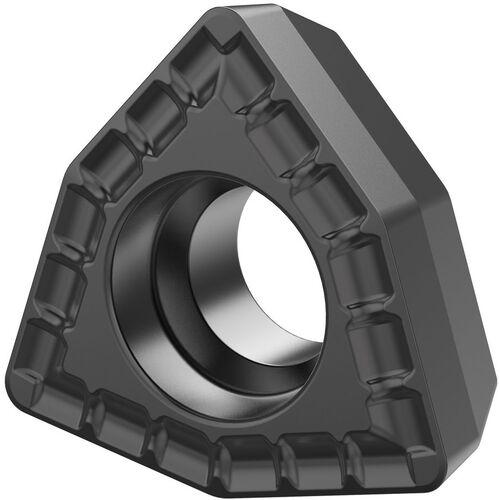

DFT030204MD KC7140 DFT/HTS/HTS-C INSERT
Drill Insert; 0.156″ Length × 0.096″ Thickness × 0.236″ IC × 1/64″ Corner Radius ; 84 Degrees Included Angle ; Trigon ; Carbide ; TiN ; KC7140
Additional Tariff Surcharge of 5 %
| Cutting Edge Length (L) | 0.156″ | Shape | Trigon |
| Insert Thickness (S) | 0.096″ | Coating | TiN |
| Insert Included Angle (EPSR) | 84 Degrees | Grade | KC7140 |
| Inscribed Circle Diameter (IC) | 0.236″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Fixing Hole Diameter (D1) | 2.25 mm | Cutting Direction (HAND) | Neutral |
Product Features
| Remarks | •Positive chip breaker geometry preferred for unstable cutting on longer chipping materials at high feed rates. | Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.011
