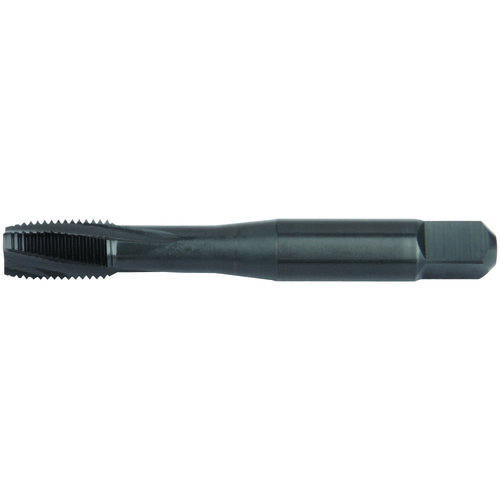

GT945015-1/4-20 H5 3FL RHSF BOTHSS-
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 1P-2P |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.44″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 11 Degrees|CW | Measurement Type | Inch |
| Cutting Edge Material | HSSCoPM |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0249
