VTSFT-TC5065 3/8-24 H3 3FL RHSFSBOT

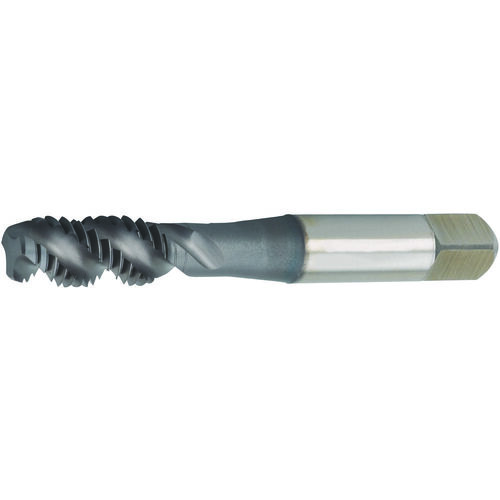

Spiral Flute Tap; 3/8″ - 24 ; 2.92″ OAL ; 3 FL ; HSSCo ; Oxide ; H3
| Thread Diameter Size (TDZ) | 3/8″ | Standard | ANSI |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.92″ | Coating | Oxide |
| Thread Cutting Part Length (THL) | 0.74″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
0.088
