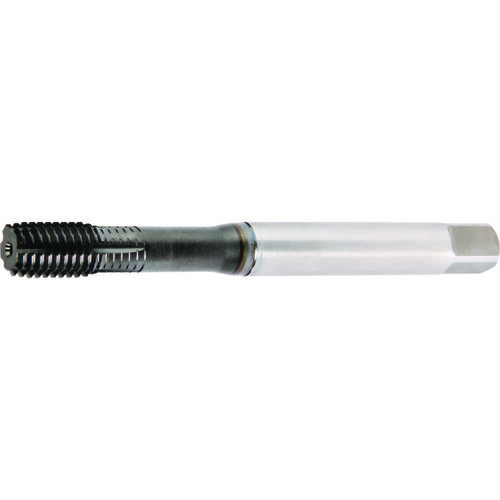

GT235015 M10X1.5 6HX FT SBOT CH371
Additional Tariff Surcharge of 5 %
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN 2174 |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Cutting Edge Material | HSSCo-PM |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.1102
