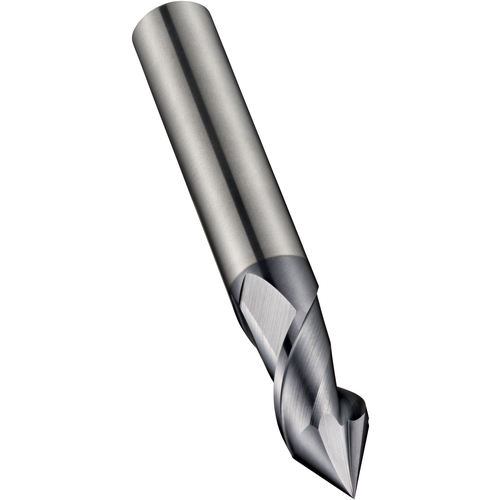

12.00 MM Dormer HM AlTiN DIN 6535 HA Shank Chamfering End Mill -60 N E-code # S73912.0
E-code # S73912.0
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Point Angle (SIG) | 60 Degrees |
| Application | Shank Cutter Chamfering | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 12 mm | Coating | AlTiN |
| Usable Length (LU) | 25 mm | Shank Type | Round |
| Flute Count (NOF) | 2 | Style | Chamfer Mill |
| Flute Helix Angle (FHA) | 40 Degrees | Length Group | Short | Stub |
| Overall Length (OAL) | 75 mm | Standard | DIN 6535 HA |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | S739 |
Product Features
| Family Description | E-code # S73912.0 | Country of Origin | JAPAN |
Shipping Info
Package Weight
.190
