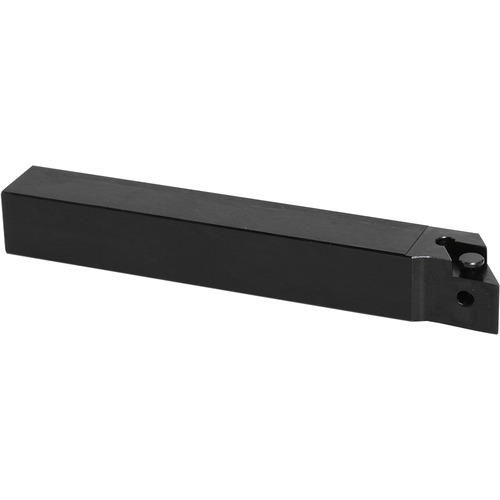

ADJCL 1212JX11FF HOLDER
Alternate Manufacture # ADJCL1212JX11FF
| Shank Height (H) | 12 mm | Master Insert Identification (MIID) | DCGT325… | DCMX325… | DCMT325… | DCET325… | DCGW325… | DCMW325… |
| Shank Width (B) | 12 mm | Application | Swiss | External Turning | Copying |
| Overall Length (OAL) | 120 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Clamping System | Back Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Series/List # | ADJC |
Product Features
| Family Description | Alternate Manufacture # ADJCL1212JX11FF | Country of Origin | USA |
Shipping Info
Package Weight
.3159
