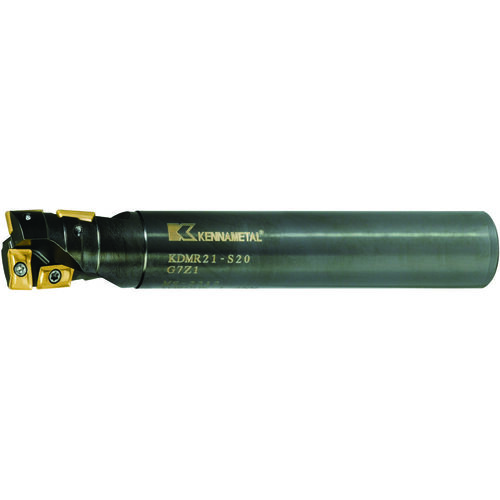

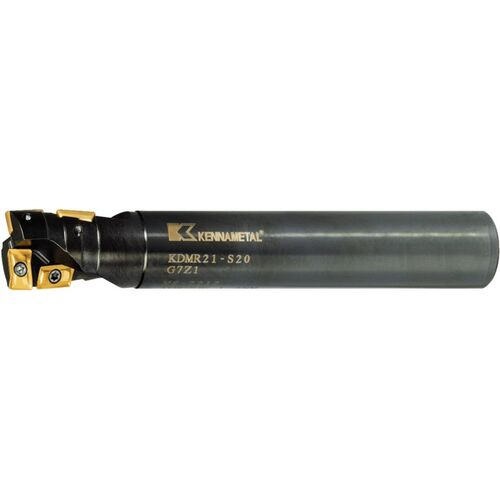

KDMR20S20 MULTI-FUNCTION MILLING CUTTER
| Cutting Diameter (DC) | 19 mm | Cutting Length | 22 mm |
| Flute Count (NOF) | 2 | Cutting Depth | 35 mm |
| Overall Length (OAL) | 130″ | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •Low cutting forces. •Reduced shank diameters for access down long side walls. •Excellent chip evacuation, even machining on an angle. •When drilling, use (1) as the effective number of teeth (ZU). •Milling to the maximum axial depth of (Ap2), we have (2) effective teeth. | Country of Origin | USA |
Shipping Info
Package Weight
.8200
