| Cutting Diameter (DC) | 30.5 mm | Shank Length (LS) | 95.25 mm |
| Length Group | 5D | Cutting Direction (HAND) | Neutral |
| Shank Type | Round | Style | FDS32 |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Decimal Equivalent | 1.2008″ |
| Overall Length (OAL) | 311.25 mm |
Product Features

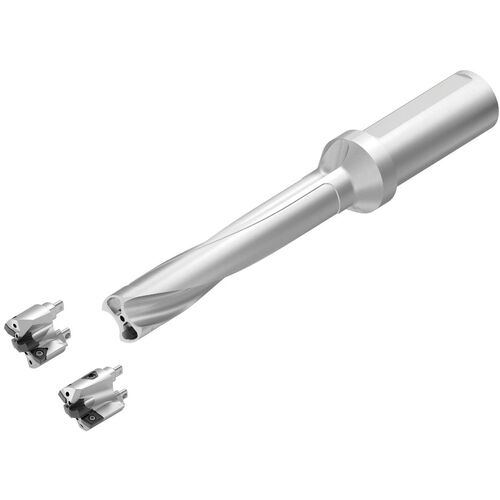

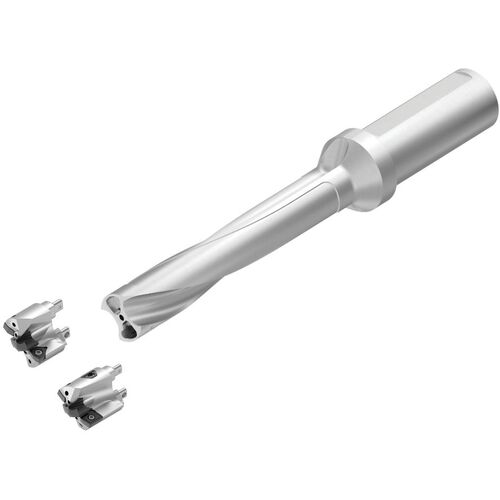

| Remarks | •Straight fluted KSEM PLUS™ Tool holder. Very stable with large chip flutes and a precision FDS head clamping system. Combine with a KSEM PLUS™ A1 or B1 head and required carbide inserts. •Save stock and tooling cost by exchanging a worn head and replacing it with a new one on the same tool holder. •Flexibility due to our unique FDS clamping system: A certain size range of heads (A1 or B1) can be used depending on the tool holders FDS size (FDS 28 to FDS 120). •Perfectly fitting into lathe applications with stable double flat shank, featuring a lateral coolant entry on the flange. •Custom Solutions: Our KSEM PLUS™ tool holders are available with all popular shank styles. You can also order KSEM PLUS™ Tool Holders with 10° helixed chip flutes (e.g. for better chip removal in cast iron). | Country of Origin | Germany |
Shipping Info
LocalField10
0
Package Weight
3.69
