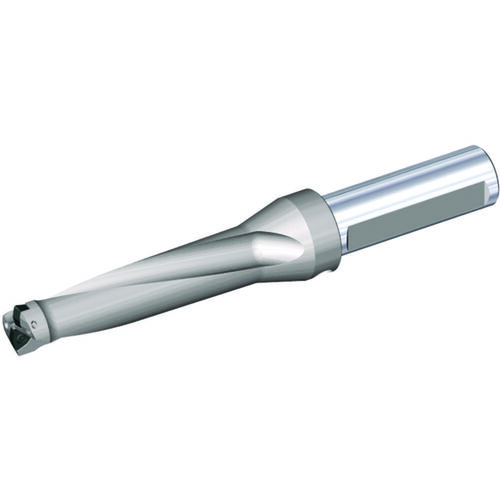

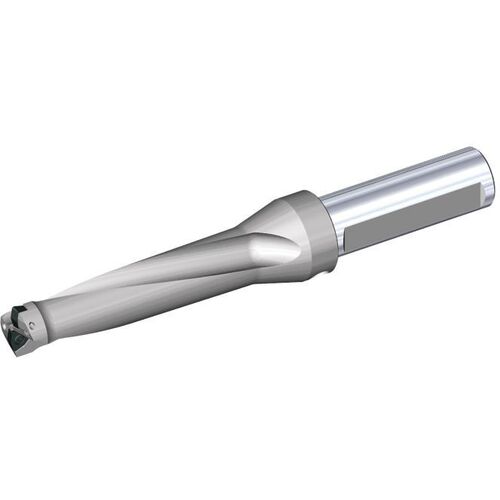

DFT1625R4SSF150 DRILL-FIX DRILL BODIES
| Usable Length (LU) | 6-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Diameter Minimum (DCN) | 1-5/8″ |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 1-3/4″ |
| Protruding Length (LPR) | 7.48″ | Measurement Type | Inch |
| Shank Length (LS) | 3-3/4″ | Length Group | 4D |
| Overall Length (OAL) | 12-1/8″ |
Product Features
| Remarks | •Drill Fix DFT is one of the most versatile and reliable tool solutions covering a large diameter range and offers portfolio of insert geometries and grades. •Trigon shaped inserts are used for both inboard and outboard inserts and offer the highest centering capabilities and three cutting edges each. •Drill shipped with insert screws, side pipe plug, and Torx wrench. | Country of Origin | USA |
Shipping Info
Package Weight
4.2500
