‎1602 1-3/8″ HAND LHS HSS

Item # MT5021310

UNSPSC: 27112837

Brand: Morse Cutting Tools

MFG#: 21310

UPC #: 01032978 | 68612521310 | 686125213107

UOM: EA

Additional Canadian Tariff of 25 %

Quantity Available

Cutting Diameter (DC)

‎1-3/8″

Connection Diameter Machine Side (DCONMS)

‎1-3/8″

Decimal Equivalent

1.375″

Shank Size (SS)

‎1-3/8″

Length Chip Flute (LCF)

‎6-5/16″

Shank Type

Round w/ Drive Square

Flute Type

LH Spiral

Cutting Edge Material

HSS

Flute Count (NOF)

Coating

Uncoated

Cutting Direction (HAND)

Right Hand

Measurement Type

Inch

Overall Length (OAL)

‎12-5/8″

Series/List #

1602

Product Features

Remarks

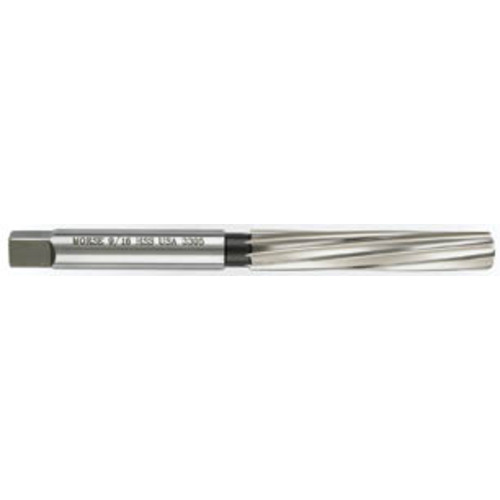

‎Hand Reamers• Left Hand Helical† Flute pushes chips out ahead of the reamer in through holes and bridges interruptions in the hole being reamed.• Used for hand reaming for final sizing and finishing of holes.• Ground with a starting taper for easy entry into the hole.• Shankd are the same size the reamer size and are supplied with a square end for holding in a tap wrench or vise.• Diameter Tolerances• Up to 1/2 -- +.0002/-0• over 1/2 to 5/8 -- +.0003/-0• over 5/8 to 1-1/2 -- +.0001/+.0004

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

7.88000

Package Width

1.00000

Package Height

1.00000

Package Weight

4.7
