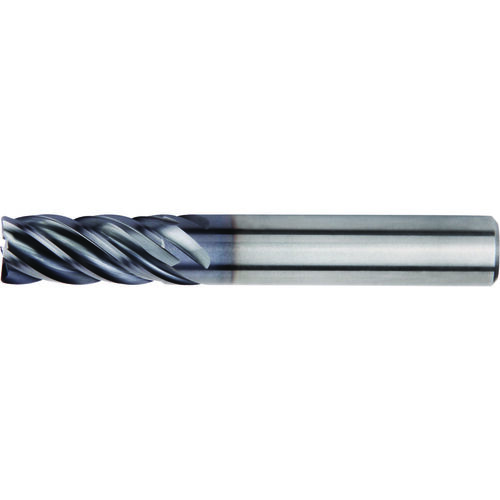

| Cutting Diameter (DC) | 12 mm | Flute Count (NOF) | 5 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Helix Angle (FHA) | CW |
| Depth of Cut Maximum (APMX) | 26 mm | Shank Type | Round |
| Overall Length (OAL) | 83 mm | Usable Length (LU) | 26 mm |
| Cutting Edge Material | Carbide | Grade | KCPM15 |
| Coating | AlTiN | Decimal Equivalent | 0.4724″ |
Product Features
| Remarks | •Single tool for both roughing and finishing operations for fewer setups. •Unequal flute spacing minimizes chatter for smoother machining. •Kennametal standard dimensions. •Non-centre cutting. •Five-flute geometry enables slotting up to 1 x D. | Country of Origin | USA |
Shipping Info
Package Weight
.2718
